UCS 5.0-2 errata374.- error during renew certificate

Hello to everyone,
i got this error after editing about some settings (Location, Organization) of my root certificate.

I did this using management panel

Traceback (most recent call last):
  File "/usr/lib/python3/dist-packages/univention/uldap.py", line 208, in _decorated
    return func(self, *args, **kwargs)
  File "/usr/lib/python3/dist-packages/univention/uldap.py", line 380, in __starttls
    self.lo.start_tls_s()
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 1220, in start_tls_s
    res = self._apply_method_s(SimpleLDAPObject.start_tls_s,*args,**kwargs)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 1197, in _apply_method_s
    return func(self,*args,**kwargs)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 864, in start_tls_s
    return self._ldap_call(self._l.start_tls_s)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 329, in _ldap_call
    reraise(exc_type, exc_value, exc_traceback)
  File "/usr/lib/python3/dist-packages/ldap/compat.py", line 44, in reraise
    raise exc_value
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 313, in _ldap_call
    result = func(*args,**kwargs)
ldap.CONNECT_ERROR: {'desc': 'Connect error', 'info': 'error:1416F086:SSL routines:tls_process_server_certificate:certificate verify failed (self signed certificate in certificate chain)'}

During handling of the above exception, another exception occurred:

Traceback (most recent call last):
  File "/usr/lib/python3/dist-packages/univention/management/console/modules/diagnostic/__init__.py", line 280, in execute
    result = execute(umc_module, **kwargs)
  File "/usr/lib/python3/dist-packages/univention/management/console/modules/diagnostic/plugins/00_check_server_password.py", line 160, in run
    if not check_machine_password(master=True):
  File "/usr/lib/python3/dist-packages/univention/management/console/modules/diagnostic/plugins/00_check_server_password.py", line 99, in check_machine_password
    univention.uldap.getMachineConnection(ldap_master=master)
  File "/usr/lib/python3/dist-packages/univention/uldap.py", line 173, in getMachineConnection
    return access(host=ucr['ldap/master'], port=port, base=ucr['ldap/base'], binddn=ucr['ldap/hostdn'], bindpw=bindpw, start_tls=start_tls, decode_ignorelist=decode_ignorelist, reconnect=reconnect)
  File "/usr/lib/python3/dist-packages/univention/uldap.py", line 288, in __init__
    self.__open(ca_certfile)
  File "/usr/lib/python3/dist-packages/univention/uldap.py", line 366, in __open
    self.__starttls()
  File "/usr/lib/python3/dist-packages/univention/uldap.py", line 216, in _decorated
    return func(self, *args, **kwargs)
  File "/usr/lib/python3/dist-packages/univention/uldap.py", line 380, in __starttls
    self.lo.start_tls_s()
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 1220, in start_tls_s
    res = self._apply_method_s(SimpleLDAPObject.start_tls_s,*args,**kwargs)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 1197, in _apply_method_s
    return func(self,*args,**kwargs)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 864, in start_tls_s
    return self._ldap_call(self._l.start_tls_s)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 329, in _ldap_call
    reraise(exc_type, exc_value, exc_traceback)
  File "/usr/lib/python3/dist-packages/ldap/compat.py", line 44, in reraise
    raise exc_value
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 313, in _ldap_call
    result = func(*args,**kwargs)
ldap.CONNECT_ERROR: {'desc': 'Connect error', 'info': 'error:1416F086:SSL routines:tls_process_server_certificate:certificate verify failed (self signed certificate in certificate chain)'}

I found this topic

But in my case reboot hasn’t fix the issue.

looking the log file on /var/log/univention/connector-s4-status.log
i found the first error:

try to sync 0 changes from S4
done:
Changes from S4:  0 (0 saved rejected)
--------------------------------------
- sleep 5 seconds (3/10 until resync) -
Wed Aug  3 14:59:11 2022
--------------------------------------
try to sync 0 changes from UCS
done:
Changes from UCS: 0 (0 saved rejected)
--------------------------------------
--------------------------------------
try to sync 0 changes from S4
done: Wed Aug  3 14:59:11 2022
 --- connect failed, failure was: ---
Traceback (most recent call last):
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 1197, in _apply_method_s
    return func(self,*args,**kwargs)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 846, in search_ext_s
    return self.result(msgid,all=1,timeout=timeout)[1]
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 738, in result
    resp_type, resp_data, resp_msgid = self.result2(msgid,all,timeout)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 742, in result2
    resp_type, resp_data, resp_msgid, resp_ctrls = self.result3(msgid,all,timeout)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 749, in result3
    resp_ctrl_classes=resp_ctrl_classes
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 756, in result4
    ldap_result = self._ldap_call(self._l.result4,msgid,all,timeout,add_ctrls,add_intermediates,add_extop)
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 329, in _ldap_call
    reraise(exc_type, exc_value, exc_traceback)
  File "/usr/lib/python3/dist-packages/ldap/compat.py", line 44, in reraise
    raise exc_value
  File "/usr/lib/python3/dist-packages/ldap/ldapobject.py", line 313, in _ldap_call
    result = func(*args,**kwargs)
ldap.SERVER_DOWN: {'desc': "Can't contact LDAP server"}

During handling of the above exception, another exception occurred:

Infact the slapd service has been restarted in that moment (i think during update process)

The login page gives to me an error when i click on login button.

So i decided to restore the folder /etc/univention/ssl.orig with previous certificates updating all computer certificates (as descripted here Renewing the SSL certificates)

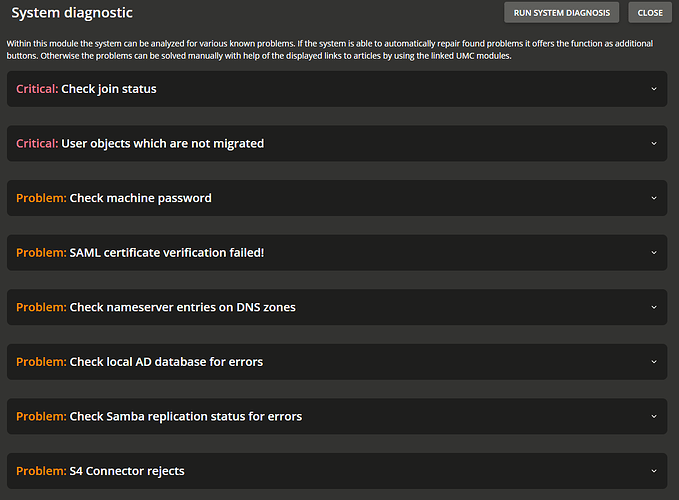

Now i can access to management panel, but System Diagnostic has founds a lot of problems


All of these seems related to problem above.

What can i do ?

Thanks
Leonardo

Hi,

I did a quick(!) verification if the UMC-module would at least leave the system in a halfway useable state. This was the case but as expected and announced by a warning before saving the new CA there are additional steps to be done.

The first error in your case looks like one component did not know about the new CA. Under normal circumstances the steps from Renewing the SSL certificates especiallyupdate-ca-certificates and a restart of the services should be enough.

Your last screenshot is missing the explanation for the found problems but I would also expect that they can be solved by walking through the the mentioned article.
