Problem with slam certificate and join status after upgrade to 5.0-2

[lirees]

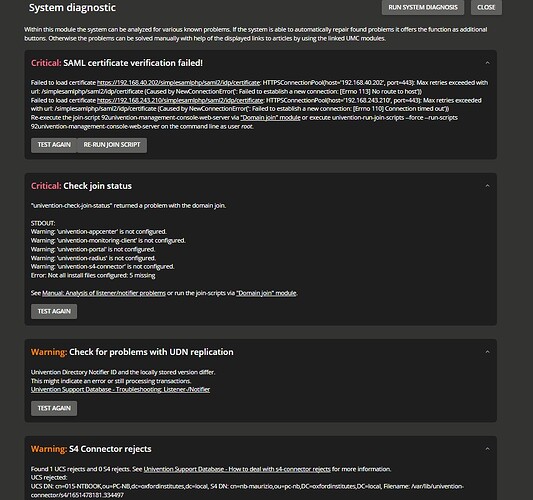

After the upgrade to the 5.0-2 i have the same problem with slam certificate and join status

i have try to follow this procedure but the problem persist …

Renewing the SSL certificates

Communication between the different systems in a UCS domain is largely SSL encrypted. A root certificate and host certificate for each computer are required for the SSL encryption. The root certificate is only valid for a specified period of time, as are the host certificates created with the root certificate. Once this period of time elapses, services which encrypt their communication with SSL (e.g., LDAP) no longer function. It is thus essential to verify the validity of the certificates and c…

then i tried to update to the latest version 5.0-3 it didn’t help

thanks in advance

[lirees]

the UCS is unusable, i can create a user but i can’t join the pc to the domain, i can’t connect a new backup UCS for migrate all the data to a new server … I am desperate

the univention-check-join-status report this

Warning: 'univention-appcenter' is not configured.
Warning: 'univention-monitoring-client' is not configured.
Warning: 'univention-portal' is not configured.
Warning: 'univention-radius' is not configured.
Warning: 'univention-s4-connector' is not configured.
Error: Not all install files configured: 5 missing

if i try run the commend univention-run-join-scripts the join.log file report this

univention-join-hooks: looking for hook type "join/pre-joinscripts" on cloud.mydomain.local
Found hooks:

RUNNING 01univention-ldap-server-init.inst
EXITCODE=already_executed
RUNNING 02univention-directory-notifier.inst
EXITCODE=already_executed
RUNNING 03univention-directory-listener.inst
EXITCODE=already_executed
RUNNING 04univention-ldap-client.inst
EXITCODE=already_executed
RUNNING 05univention-bind.inst
EXITCODE=already_executed
RUNNING 08univention-apache.inst
EXITCODE=already_executed
RUNNING 10univention-ldap-server.inst
EXITCODE=already_executed
RUNNING 11univention-heimdal-init.inst
EXITCODE=already_executed
RUNNING 11univention-pam.inst
EXITCODE=already_executed
RUNNING 15univention-directory-notifier-post.inst
EXITCODE=already_executed
RUNNING 15univention-heimdal-kdc.inst
EXITCODE=already_executed
RUNNING 18python-univention-directory-manager.inst
EXITCODE=already_executed
RUNNING 20univention-directory-policy.inst
EXITCODE=already_executed
RUNNING 20univention-join.inst
EXITCODE=already_executed
RUNNING 20univention-ldap-config-master.inst
EXITCODE=already_executed
RUNNING 22univention-directory-manager-rest.inst
EXITCODE=already_executed
RUNNING 26univention-nagios-common.inst
EXITCODE=already_executed
RUNNING 30univention-appcenter.inst
2023-04-05 05:39:10.159757303+02:00 (in joinscript_init)
Object exists: cn=apps,cn=univention,dc=mydomain,dc=local
Object exists: cn=ldapschema,cn=univention,dc=mydomain,dc=local
Object exists: cn=ldapacl,cn=univention,dc=mydomain,dc=local
Object exists: cn=udm_syntax,cn=univention,dc=mydomain,dc=local
Object exists: cn=udm_module,cn=univention,dc=mydomain,dc=local
No modification: cn=univention-app,cn=ldapschema,cn=univention,dc=mydomain,dc=local

No modification: cn=66univention-appcenter_app,cn=ldapacl,cn=univention,dc=mydomain,dc=local

No modification: cn=app_syntax,cn=udm_syntax,cn=univention,dc=mydomain,dc=local

No modification: cn=appcenter/app,cn=udm_module,cn=univention,dc=mydomain,dc=local

Waiting for activation of the extension object univention-app: ......................................................INFO: No change of core data of object univention-app.
INFO: No change of core data of object 66univention-appcenter_app.
INFO: No change of core data of object app_syntax.
INFO: No change of core data of object appcenter/app.
ERROR: Primary Directory Node did not mark the extension object active within 180 seconds.
ERROR
ucs_registerLDAPExtension: registraton of /usr/share/univention-appcenter/univention-app.schema failed.

EXITCODE=1
8d0b1019-f61f-4069-a437-31db12b28364
RUNNING 30univention-monitoring-client.inst
2023-04-05 05:42:15.851793185+02:00 (in joinscript_init)
Object exists: cn=monitoring,dc=mydomain,dc=local
Object exists: cn=ldapschema,cn=univention,dc=mydomain,dc=local
Object exists: cn=ldapacl,cn=univention,dc=mydomain,dc=local
Object created: cn=univention-monitoring,cn=ldapschema,cn=univention,dc=mydomain,dc=local

Object created: cn=62univention-monitoring,cn=ldapacl,cn=univention,dc=mydomain,dc=local

Waiting for activation of the extension object univention-monitoring: ......................................................ERROR: Primary Directory Node did not mark the extension object active within 180 seconds.
ERROR
ucs_registerLDAPExtension: registraton of /usr/lib/univention-monitoring-client/schema/univention-monitoring.schema failed.
30univention-monitoring-client.inst: LDAP Schema/ACL
EXITCODE=1
51aeb3d9-37f9-4ad1-8b3c-c0d0545b7e34
RUNNING 30univention-nagios-client.inst
EXITCODE=already_executed
RUNNING 31univention-monitoring-s4-connector.inst
EXITCODE=already_executed
RUNNING 31univention-monitoring-samba.inst
EXITCODE=already_executed
RUNNING 31univention-nagios-s4-connector.inst
EXITCODE=already_executed
RUNNING 31univention-nagios-samba.inst
EXITCODE=already_executed
RUNNING 33univention-portal.inst
2023-04-05 05:45:20.654262867+02:00 (in joinscript_init)
Object exists: cn=UMC,cn=univention,dc=mydomain,dc=local
Object exists: cn=UMC,cn=policies,dc=mydomain,dc=local
Object exists: cn=operations,cn=UMC,cn=univention,dc=mydomain,dc=local
Object exists: cn=default-umc-all,cn=UMC,cn=policies,dc=mydomain,dc=local
No modification: cn=Domain Admins,cn=groups,dc=mydomain,dc=local
Object exists: cn=default-umc-users,cn=UMC,cn=policies,dc=mydomain,dc=local
No modification: cn=Domain Users,cn=groups,dc=mydomain,dc=local
Object exists: cn=ldapschema,cn=univention,dc=mydomain,dc=local
Object exists: cn=ldapacl,cn=univention,dc=mydomain,dc=local
Object exists: cn=udm_syntax,cn=univention,dc=mydomain,dc=local
No modification: cn=univention-portal,cn=ldapschema,cn=univention,dc=mydomain,dc=local

No modification: cn=62univention-portal,cn=ldapacl,cn=univention,dc=mydomain,dc=local

No modification: cn=univention-portal,cn=udm_syntax,cn=univention,dc=mydomain,dc=local

Waiting for activation of the extension object univention-portal: OK
Waiting for activation of the extension object 62univention-portal: OK
Waiting for activation of the extension object univention-portal: ......................................................INFO: No change of core data of object univention-portal.
INFO: No change of core data of object 62univention-portal.
INFO: No change of core data of object univention-portal.
ERROR: Primary Directory Node did not mark the extension object active within 180 seconds.
ERROR
ucs_registerLDAPExtension: registraton of /usr/lib/univention-portal/syntax/univention-portal.py failed.

EXITCODE=1
b27433a0-fd7b-4ba6-afc0-e2f401ce3efa
RUNNING 35univention-appcenter-docker.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-appcenter.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-diagnostic.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-ipchange.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-join.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-lib.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-quota.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-reboot.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-services.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-setup.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-sysinfo.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-top.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-ucr.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-udm.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-updater.inst
EXITCODE=already_executed
RUNNING 35univention-management-console-module-welcome.inst
EXITCODE=already_executed
RUNNING 35univention-server-overview.inst
EXITCODE=already_executed
RUNNING 36univention-management-console-module-apps.inst
EXITCODE=already_executed
RUNNING 40univention-postgresql.inst
EXITCODE=already_executed
RUNNING 50onlyoffice-ds.inst
EXITCODE=already_executed
RUNNING 50owncloud.inst
EXITCODE=already_executed
RUNNING 80univention-radius.inst
2023-04-05 05:48:27.968723419+02:00 (in joinscript_init)
Object exists: cn=services,cn=univention,dc=mydomain,dc=local
Object exists: cn=RADIUS,cn=services,cn=univention,dc=mydomain,dc=local
No modification: cn=cloud,cn=dc,cn=computers,dc=mydomain,dc=local
WARNING: cannot append RADIUS to service, value exists
Generating DH parameters, 1024 bit long safe prime, generator 2
This is going to take a long time
..................................................................................+...........................................................................................................................................................++*++*++*++*++*
Object exists: cn=ldapschema,cn=univention,dc=mydomain,dc=local
Object exists: cn=ldapacl,cn=univention,dc=mydomain,dc=local
No modification: cn=networkaccess,cn=ldapschema,cn=univention,dc=mydomain,dc=local

No modification: cn=59univention-radius,cn=ldapacl,cn=univention,dc=mydomain,dc=local

No modification: cn=66univention-radius,cn=ldapacl,cn=univention,dc=mydomain,dc=local

Waiting for activation of the extension object networkaccess: OK
Waiting for activation of the extension object 59univention-radius: ......................................................INFO: No change of core data of object networkaccess.
INFO: No change of core data of object 59univention-radius.
INFO: No change of core data of object 66univention-radius.
ERROR: Primary Directory Node did not mark the extension object active within 180 seconds.
ERROR
ucs_registerLDAPExtension: registraton of /usr/share/univention-radius/59univention-radius.acl failed.
EXITCODE=1
c230801f-cb40-4f6f-b988-f888725d6181
RUNNING 81univention-nfs-server.inst
EXITCODE=already_executed
RUNNING 90univention-bind-post.inst
EXITCODE=already_executed
RUNNING 91univention-saml.inst
EXITCODE=already_executed
RUNNING 92univention-management-console-web-server.inst
EXITCODE=already_executed
RUNNING 96univention-samba4.inst
EXITCODE=already_executed
RUNNING 97univention-s4-connector.inst
2023-04-05 05:51:34.040359241+02:00 (in joinscript_init)
05.04.23 05:51:34.909  DEBUG_INIT
Not updating connector/s4/ldap/host
Not updating connector/s4/ldap/base
Not updating connector/s4/ldap/ssl
Not updating connector/s4/mapping/group/language
Not updating connector/s4/ldap/protocol
Not updating connector/s4/ldap/socket
Object exists: cn=gPLink,cn=custom attributes,cn=univention,dc=mydomain,dc=local
Object exists: cn=WMIPolicy,cn=System,dc=mydomain,dc=local
Object exists: cn=SOM,cn=WMIPolicy,cn=System,dc=mydomain,dc=local
Object exists: cn=udm_syntax,cn=univention,dc=mydomain,dc=local
No modification: cn=s4_connector,cn=udm_syntax,cn=univention,dc=mydomain,dc=local

Waiting for activation of the extension object s4_connector: ......................................................INFO: No change of core data of object s4_connector.
ERROR: Primary Directory Node did not mark the extension object active within 180 seconds.
ERROR
ucs_registerLDAPExtension: registraton of /usr/lib/python3/dist-packages/univention/admin/syntax.d/s4_connector.py failed.

EXITCODE=1
533a6659-dd19-4378-8206-ad27a398ac7e
RUNNING 98univention-pkgdb-tools.inst
EXITCODE=already_executed
RUNNING 98univention-samba4-dns.inst
EXITCODE=already_executed
RUNNING 98univention-samba4-saml-kerberos.inst
EXITCODE=already_executed
univention-join-hooks: looking for hook type "join/post-joinscripts" on cloud.mydomain.local
Found hooks:

[lirees]

i did some other check … it seems that the univention-directory-listener service is not working can this be the problem of all ?

i have change the log level and restart the listener ( ucr set listener/debug/level=4 ) the log is on loop alway on this error

08.05.23 16:58:21.332  LISTENER    ( WARN    ) : Notifier/LDAP server is cloud.mydomain.local:7389
08.05.23 16:58:21.332  LDAP        ( PROCESS ) : connecting to ldap://cloud.mydomain.local:7389
08.05.23 16:58:21.337  LDAP        ( INFO    ) : simple_bind as cn=admin,dc=oxfordinstitutes,dc=local
08.05.23 16:58:21.342  LISTENER    ( INFO    ) : connecting to notifier cloud.mydomain.local:6669
08.05.23 16:58:21.342  LISTENER    ( INFO    ) : established connection to 192.168.40.205 port 6669
08.05.23 16:58:21.342  LISTENER    ( ALL     ) : >>>Version: 3
Capabilities:


08.05.23 16:58:21.343  LISTENER    ( ALL     ) : RESULT: [(null)]
08.05.23 16:58:21.343  LISTENER    ( ALL     ) : <<<Version: 3
Capabilities:

08.05.23 16:58:21.343  LISTENER    ( INFO    ) : connection okay to host cloud.mydomain.local:7389
08.05.23 16:58:21.343  LISTENER    ( ALL     ) : blocking signals (was 0)
08.05.23 16:58:21.343  LISTENER    ( INFO    ) : cache_init: using default mapsize: 4295000000
08.05.23 16:58:21.343  LISTENER    ( ALL     ) : cache_init: Transaction begin
mdb.c:2433: Assertion 'mp->mp_pgno != pgno' failed in mdb_page_touch()
08.05.23 16:58:21.344  LISTENER    ( WARN    ) : received signal 6

the commad systemctl status univention-directory-listener returns

● univention-directory-listener.service - Univention Directory Listener Daemon
   Loaded: loaded (/lib/systemd/system/univention-directory-listener.service; enabled; vendor preset: enabled)
  Drop-In: /etc/systemd/system/univention-directory-listener.service.d
           └─20_start_order.conf
   Active: activating (auto-restart) (Result: signal) since Mon 2023-05-08 17:02:16 CEST; 3s ago
     Docs: man:univention-directory-listener(1)
  Process: 10926 ExecStartPre=/usr/share/univention-directory-listener/fix_cache_permissions.sh (code=exited, status=0/SUCCESS)
  Process: 10929 ExecStart=/usr/sbin/univention-directory-listener -F $UDL_OPTS (code=killed, signal=ABRT)
 Main PID: 10929 (code=killed, signal=ABRT)
