How-to: Configure the Recycle Bin Policy in Nubus for UCS

Knowledge Base Community
, , , ,
1

How-to:

The Recycle Bin is a feature in UDM that provides a way to temporarily store deleted directory objects. The Recycle Bin allows administrators who accidentally removed UDM objects to restore these objects to their original state.

When activated through a Recycle Bin policy, UDM moves deleted objects to the Recycle Bin container before it removes them from the LDAP directory. UDM preserves the original object data along with metadata about the deletion. You can view all existing entries in the Recycle Bin within UMC, UDM, and the UDM HTTP REST API. You can restore these entries to their original state before the deletion. UDM purges entries in the Recycle Bin after a configurable retention time.

**Added in version 5.2-3-erratum-298:** Since UCS 5.2 erratum 298, UCS supports a Recycle Bin feature for user and group objects in UDM.

Technical Limitations

The implementation of the Recycle Bin has the following technical limitations:

- The Recycle Bin only supports the UDM types users/user and groups/group.
- The Recycle Bin is only available for Nubus for UCS.

Step 1. Activating the Recycle Bin

There are two methods available to work with the Recycle Bin:

  • UMC GUI
  • UDM via Shell

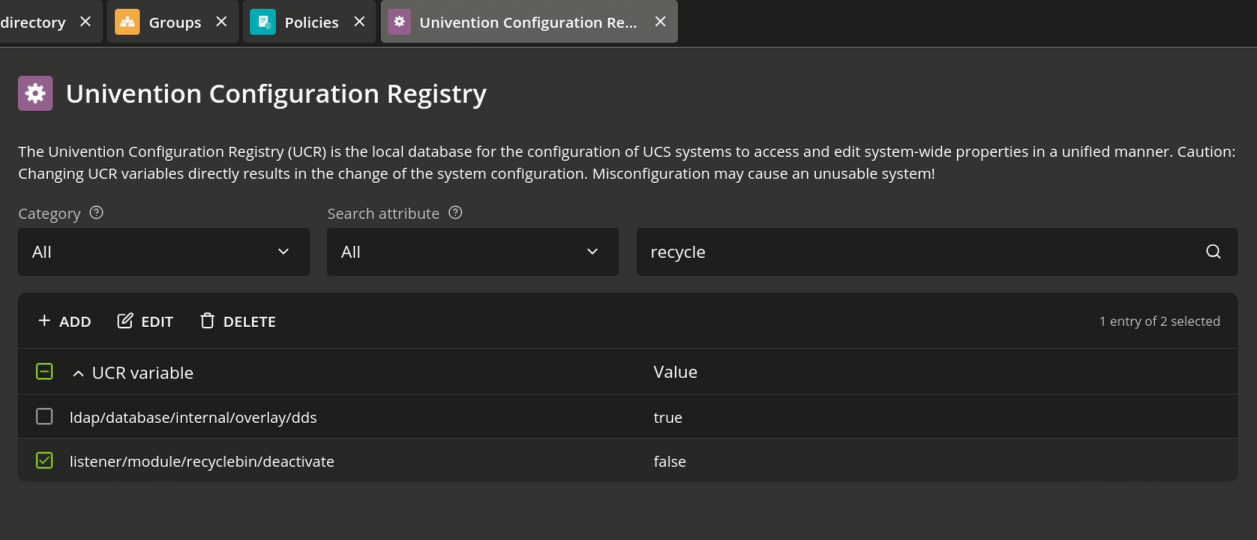

To activate the Recycle Bin, set the Univention Configuration Registry Variable listener/module/recyclebin/deactivate to false on the Primary Directory Node and all Backup Directory Nodes.

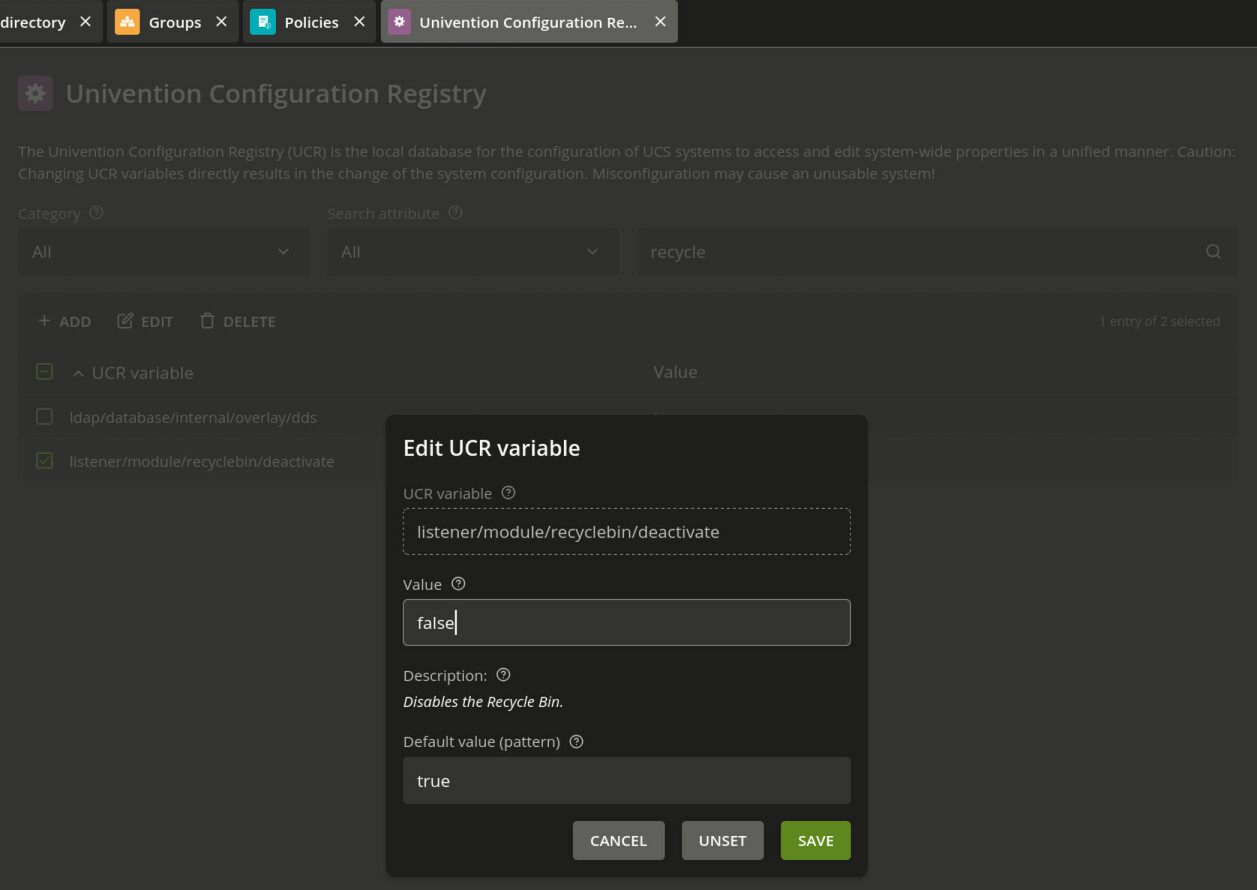

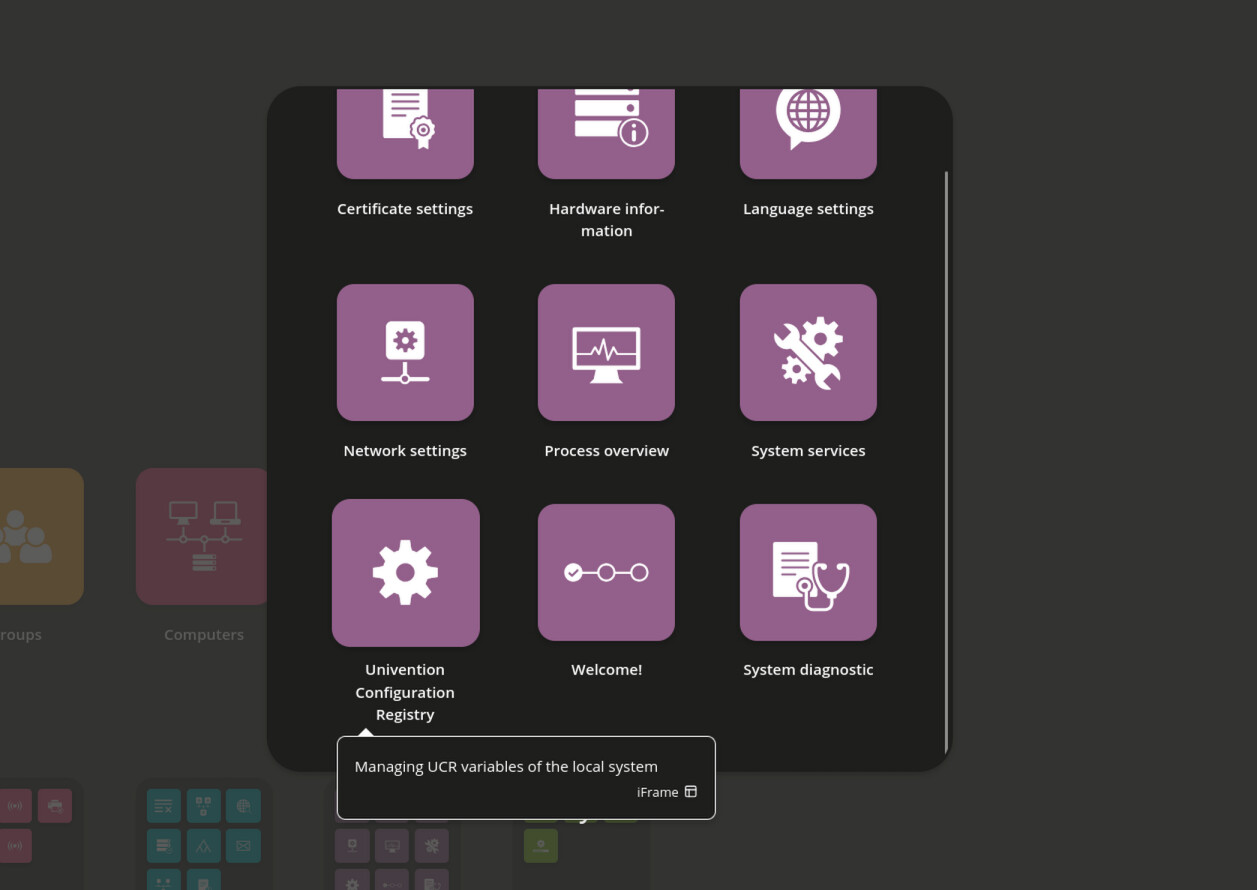

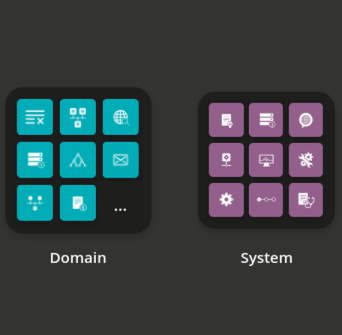

You will find that in UMC/System/Univention Configuration Registry. Search for recycle and edit the variable to set the value to false.

Screenshot_20260420_151817
Screenshot_20260420_151817342×335 24.6 KB

Screenshot_20260420_152338
Screenshot_20260420_1523381257×890 81.2 KB

Screenshot_20260420_152150
Screenshot_20260420_1521501257×540 104 KB

Screenshot_20260420_152208
Screenshot_20260420_1522081257×890 72.3 KB

Shell command

ucr set listener/module/recyclebin/deactivate=false

Step 2. Restart the Directory Listener Service

Then, restart the Directory Listener on the Primary Directory Node.

UCM/System/System services/

Screenshot_20260420_152338
Screenshot_20260420_1523381257×890 81.2 KB

Search for listener and choose the service, then you get more options.

Screenshot_20260420_152735
Screenshot_20260420_1527351312×452 70.4 KB

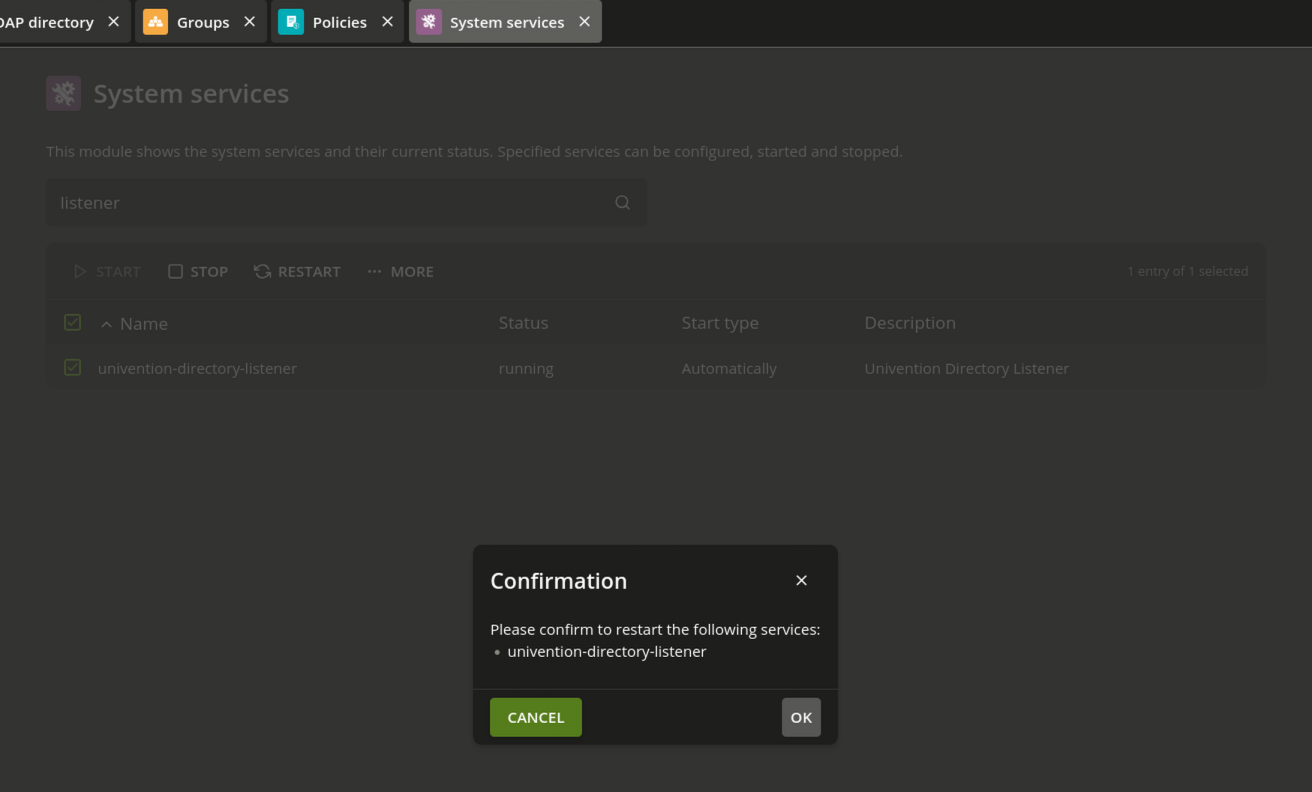

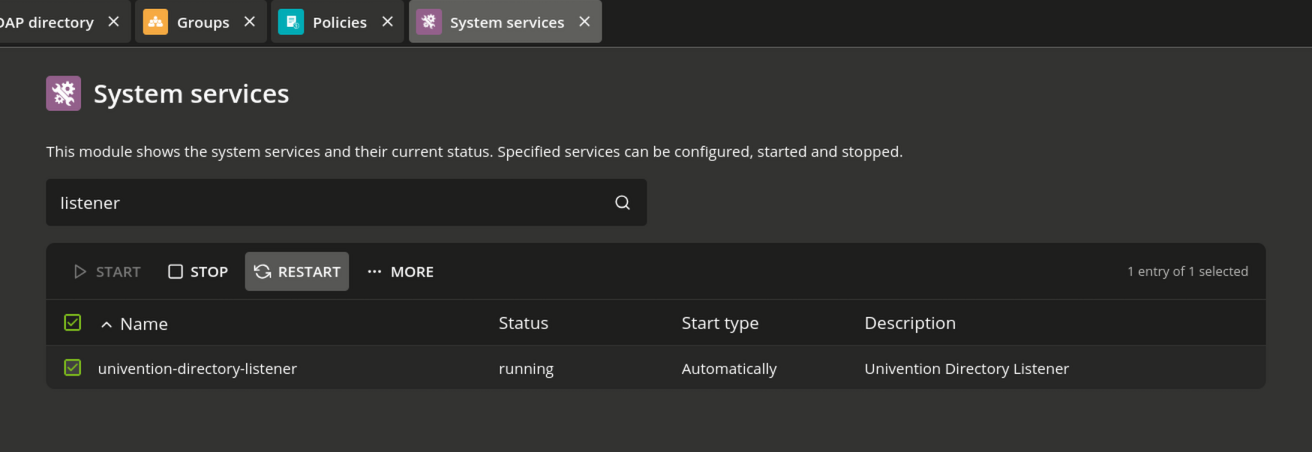

Restart the service by pressing on restart.

Screenshot_20260420_152803
Screenshot_20260420_1528031312×792 69.9 KB

Shell command
systemctl restart univention-directory-listener

Step 3. Create Recycle Bin Policy

After you create a Recycle Bin policy and link it to a container object in the LDAP directory, the Recycle Bin configuration applies to all objects within the container. Before removing an object, UDM checks if such a policy applies and moves the object to the Recycle Bin.

The Recycle Bin policy has the following configuration properties:

Recycle Bin enabled
Defines whether the Recycle Bin is active for objects. Even if a container has a linked Recycle Bin policy, you can deactivate it.

UDM modules to recycle
Defines a list of UDM module types that the Recycle Bin policy applies to, such as users/user or groups/group.

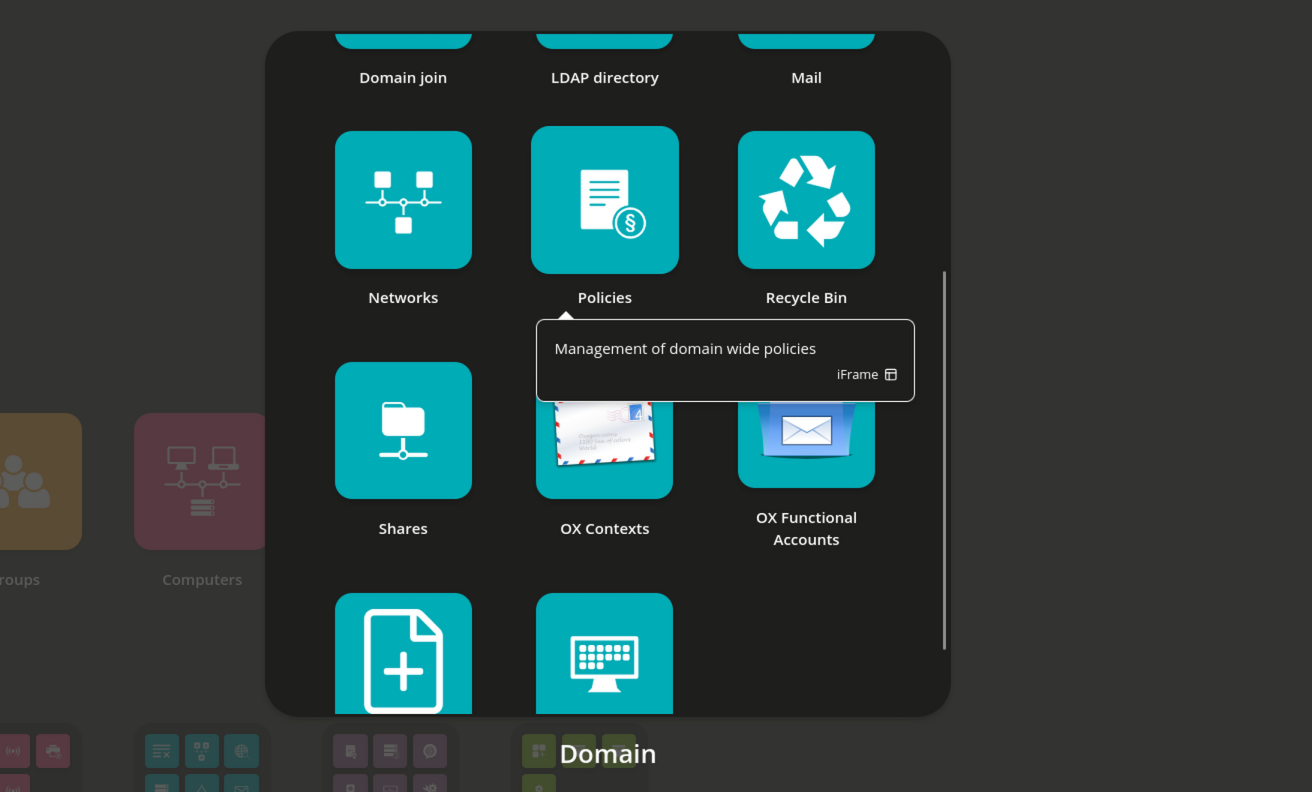

To create the policy go to UMC/Domain/Policy.

Screenshot_20260420_153803
Screenshot_20260420_1538031312×792 107 KB

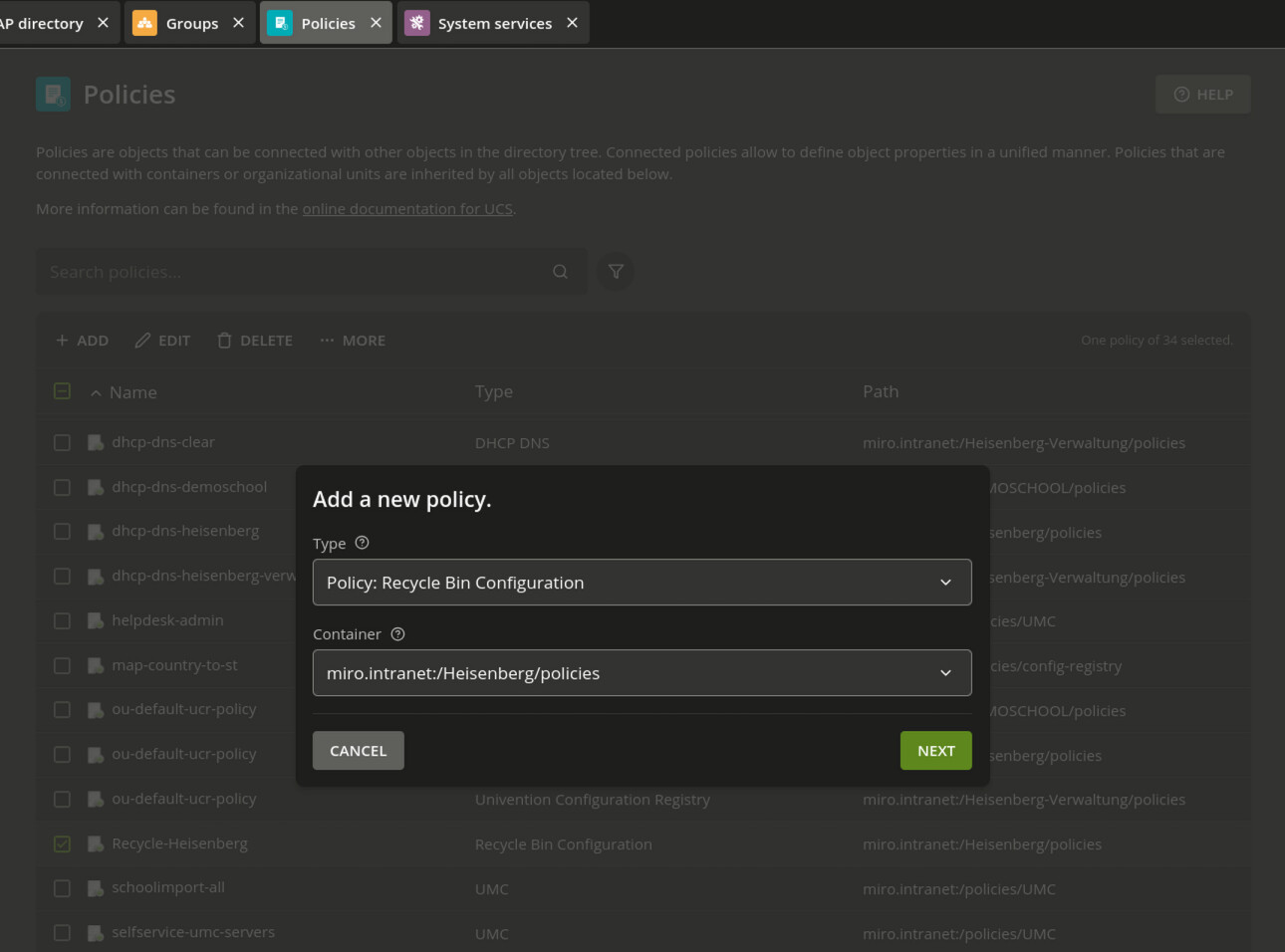

Then add a new Policy and choose the type Recycle Bin Configuration and the Position eg. Container, where the policy should be created.

Screenshot_20260420_153840
Screenshot_20260420_1538401290×956 93.1 KB

Creating the Recycle Bin Policy via Shell (UDM)

The following command creates a Recycle Bin policy directly in the shell using udm:

udm policies/recyclebin create \
--position "cn=policies,ou=Heisenberg,$(ucr get ldap/base)" \
--set name="Recycle-Heisenberg" \
--set enabled="TRUE" \
--set retention_days=180 \
--set udm_modules="users/user" \
--set udm_modules="groups/group"

Verify the created policy:

udm policies/recyclebin list
DN: cn=Recycle-Heisenberg,cn=policies,ou=Heisenberg,dc=miro,dc=intranet
  enabled: TRUE
  ldapFilter: None
  name: Recycle-Heisenberg
  retention_days: 180
  udm_modules: users/user
  udm_modules: groups/group
  univentionObjectIdentifier: c166cb13-358d-4b84-8281-13d4ea0c0e25

Step 4. Assigning the Policy via UMC

After the policy has been created, it must be assigned to a container so that it takes effect. In this example, a school OU is used, as this policy is likely to be purposefully applied in a school environment. Any other kind of container, such as cn=groups or cn=users, may also be used.

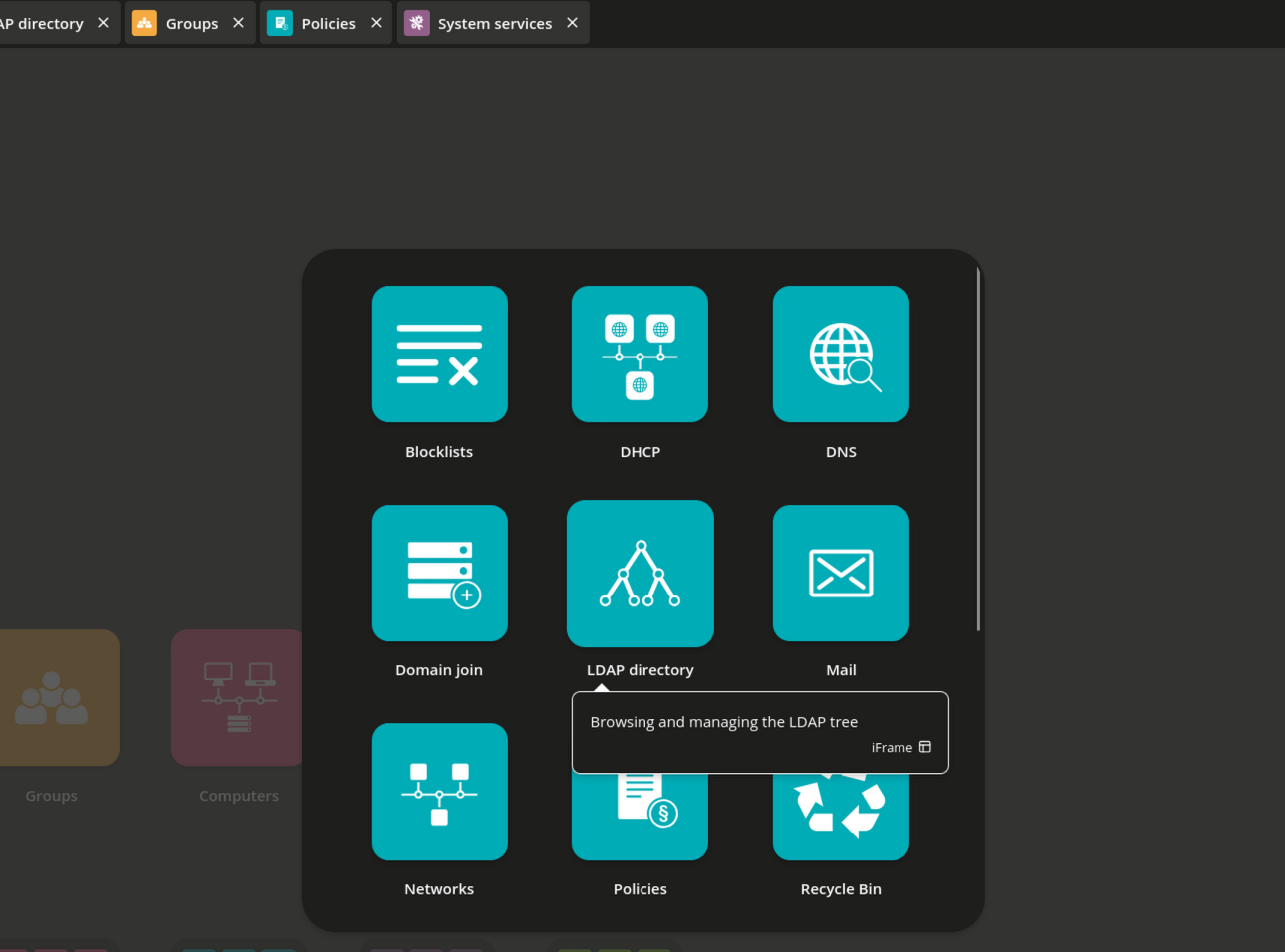

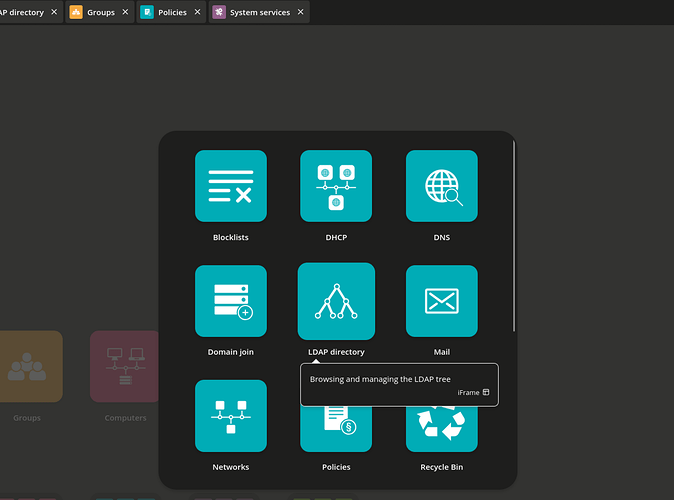

In our case, we need the UMC/Domain/LDAP Directory

Screenshot_20260420_154328
Screenshot_20260420_1543281290×956 109 KB

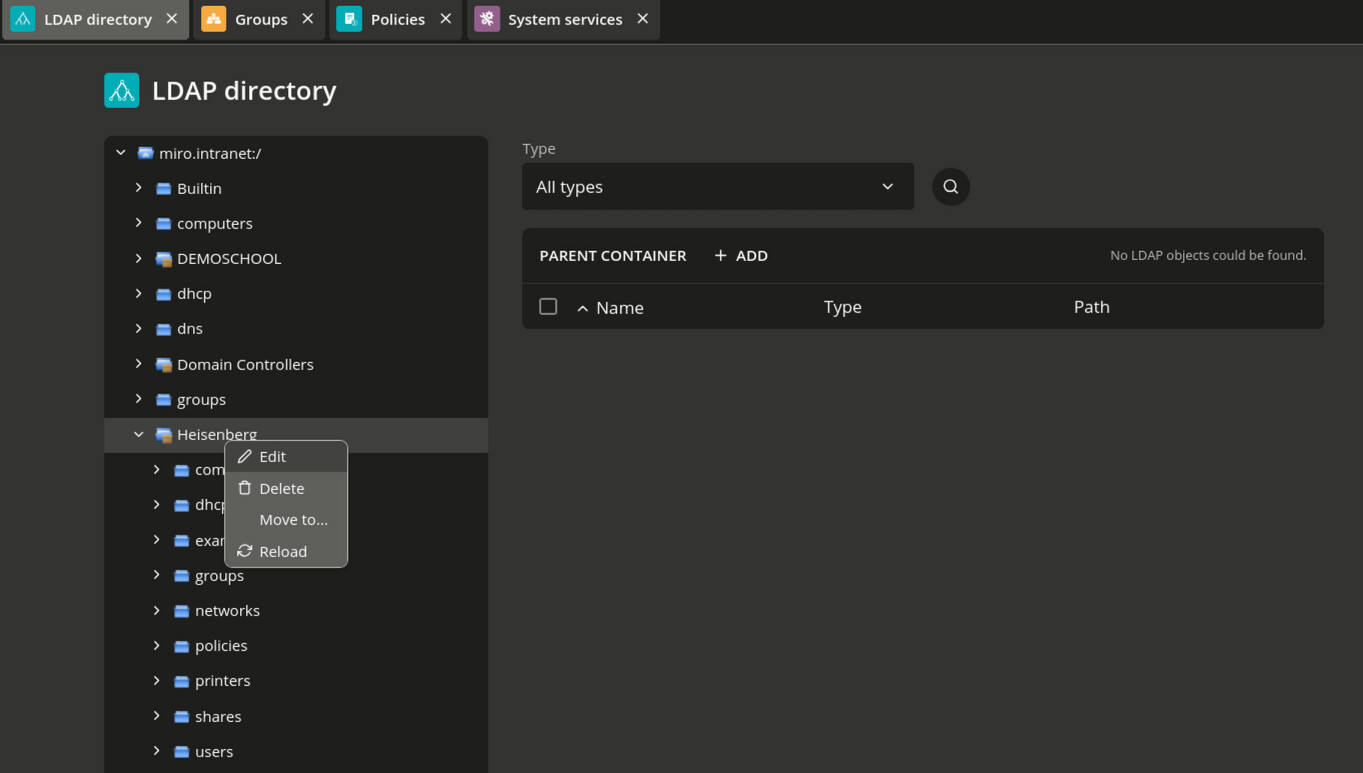

Get to the Container or Organisational Unit you want to apply the policy. Use the right click on the OU to get access to the edit menu.

Screenshot_20260420_154401
Screenshot_20260420_1544011363×773 62.6 KB

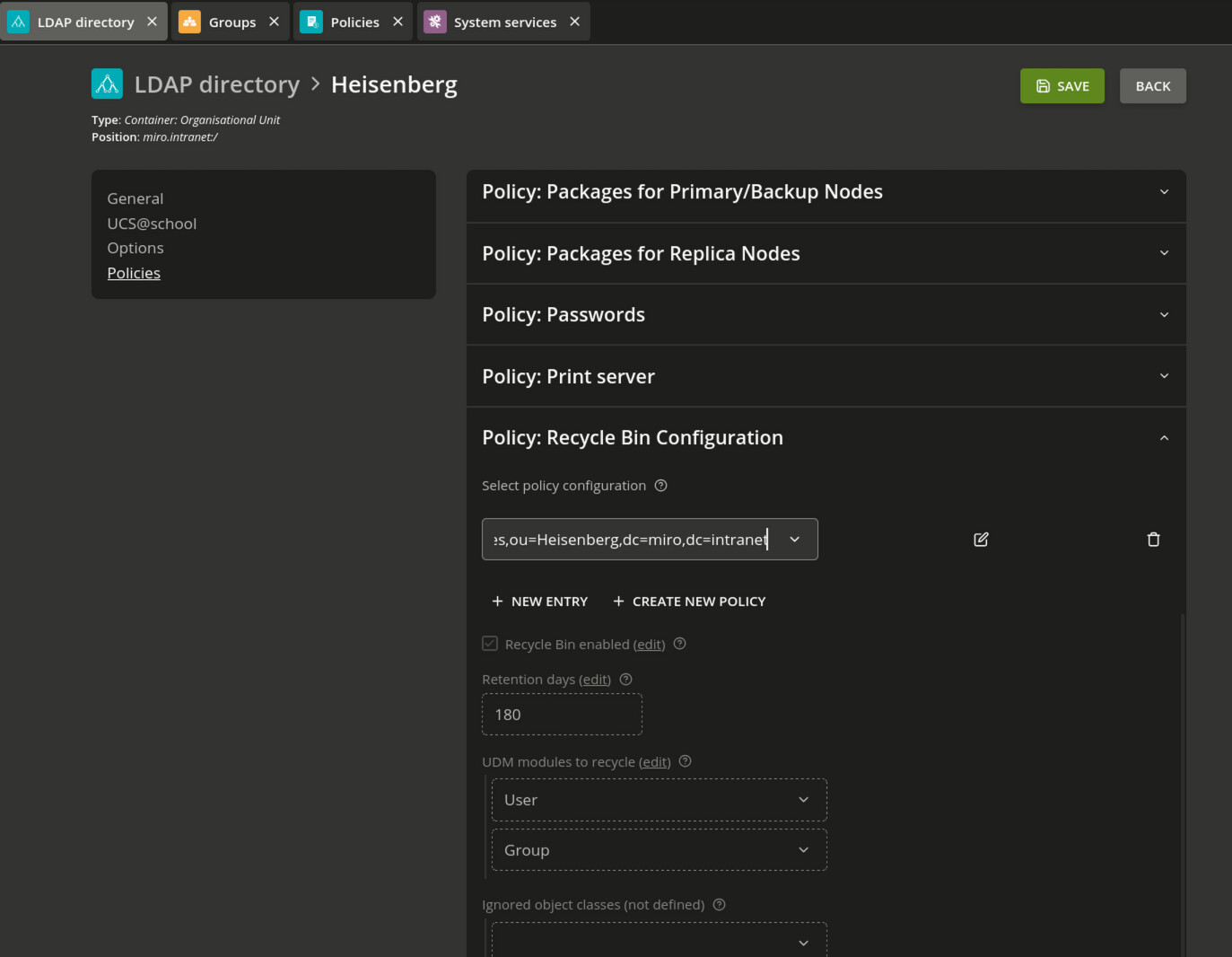

Then you have to use the tab Policies: Recycle Bin Configuration to select the created Recycle Bin policy.

Screenshot_20260420_154522
Screenshot_20260420_1545221373×1066 99.9 KB

The following example shows an OU where the Recycle bin policy is not yet assigned, because the univentionPolicyReference: cn=Recycle-Heisenberg,cn=policies,ou=Heisenberg,dc=miro,dc=intranet is missing.

udm container/ou list --filter ou=Heisenberg
ou=Heisenberg
DN: ou=Heisenberg,dc=miro,dc=intranet
  computerPath: 0
  description: None
  dhcpPath: 0
  displayName: Heisenberg
  dnsPath: 0
  domaincontrollerPath: 0
  gPLink: [LDAP://cn={B591301B-45FF-454C-9133-62F16E88C4B9},cn=policies,cn=system,DC=miro,DC=intranet;0][LDAP://cn={5F1DB86F-57FC-4AAC-86FB-E00029FB2BE1},cn=policies,cn=system,DC=miro,DC=intranet;0][LDAP://cn={02E4DF9B-27FC-4300-A00B-8D6EA0F5A86C},cn=policies,cn=system,DC=miro,DC=intranet;2]
  groupPath: 0
  licensePath: 0
  mailPath: 0
  name: Heisenberg
  networkPath: 0
  policyPath: 0
  printerPath: 0
  sharePath: 0
  ucsschoolClassShareFileServer: cn=heisenberg,cn=dc,cn=server,cn=computers,ou=Heisenberg,dc=miro,dc=intranet
  ucsschoolHomeShareFileServer: cn=heisenberg,cn=dc,cn=server,cn=computers,ou=Heisenberg,dc=miro,dc=intranet
  ucsschoolRole: school:school:Heisenberg
  univentionObjectIdentifier: da817526-41c9-4b95-8ace-c6dd69efa2a0
  userPath: 0
  univentionPolicyReference: cn=dhcp-dns-clear,cn=policies,ou=Heisenberg,dc=miro,dc=intranet
  univentionPolicyReference: cn=ou-default-ucr-policy,cn=policies,ou=Heisenberg,dc=miro,dc=intranet

Assigning the Recycle Bin Policy via Shell (UDM)

Important note: The created policy must be assigned to a container (OU=, cn=) in order to take effect. This can be done either via UMC or directly through udm in the shell.

You need the full DN of the created policy and the container/ou where the policy should apply.

OU:

udm container/ou list --filter ou=Heisenberg | grep DN:
DN: ou=Heisenberg,dc=miro,dc=intranet

Policy

udm policies/recyclebin list --filter cn=Recycle-Heisenberg | grep DN:
DN: cn=Recycle-Heisenberg,cn=policies,ou=Heisenberg,dc=miro,dc=intranet

Assign the policy with a modify from the container/ou and the parameter --policy-reference.

udm container/ou modify --dn "ou=Heisenberg,$(ucr get ldap/base)" --policy-reference "cn=Recycle-Heisenberg,cn=policies,ou=Heisenberg,$(ucr get ldap/base)"
Object modified: ou=Heisenberg,dc=miro,dc=intranet

Verify that the policy has been successfully linked to the OU.

univentionPolicyReference: cn=Recycle-Heisenberg,cn=policies,ou=Heisenberg,dc=miro,dc=intranet

root@ucs5primary:~# udm container/ou list --filter ou=Heisenberg
ou=Heisenberg
DN: ou=Heisenberg,dc=miro,dc=intranet
  computerPath: 0
  description: None
  dhcpPath: 0
  displayName: Heisenberg
  dnsPath: 0
  domaincontrollerPath: 0
  gPLink: [LDAP://cn={B591301B-45FF-454C-9133-62F16E88C4B9},cn=policies,cn=system,DC=miro,DC=intranet;0][LDAP://cn={5F1DB86F-57FC-4AAC-86FB-E00029FB2BE1},cn=policies,cn=system,DC=miro,DC=intranet;0][LDAP://cn={02E4DF9B-27FC-4300-A00B-8D6EA0F5A86C},cn=policies,cn=system,DC=miro,DC=intranet;2]
  groupPath: 0
  licensePath: 0
  mailPath: 0
  name: Heisenberg
  networkPath: 0
  policyPath: 0
  printerPath: 0
  sharePath: 0
  ucsschoolClassShareFileServer: cn=heisenberg,cn=dc,cn=server,cn=computers,ou=Heisenberg,dc=miro,dc=intranet
  ucsschoolHomeShareFileServer: cn=heisenberg,cn=dc,cn=server,cn=computers,ou=Heisenberg,dc=miro,dc=intranet
  ucsschoolRole: school:school:Heisenberg
  univentionObjectIdentifier: da817526-41c9-4b95-8ace-c6dd69efa2a0
  userPath: 0
  univentionPolicyReference: cn=dhcp-dns-clear,cn=policies,ou=Heisenberg,dc=miro,dc=intranet
  univentionPolicyReference: cn=Recycle-Heisenberg,cn=policies,ou=Heisenberg,dc=miro,dc=intranet
  univentionPolicyReference: cn=ou-default-ucr-policy,cn=policies,ou=Heisenberg,dc=miro,dc=intranet

Step 5. Listing Objects in the Recycle Bin

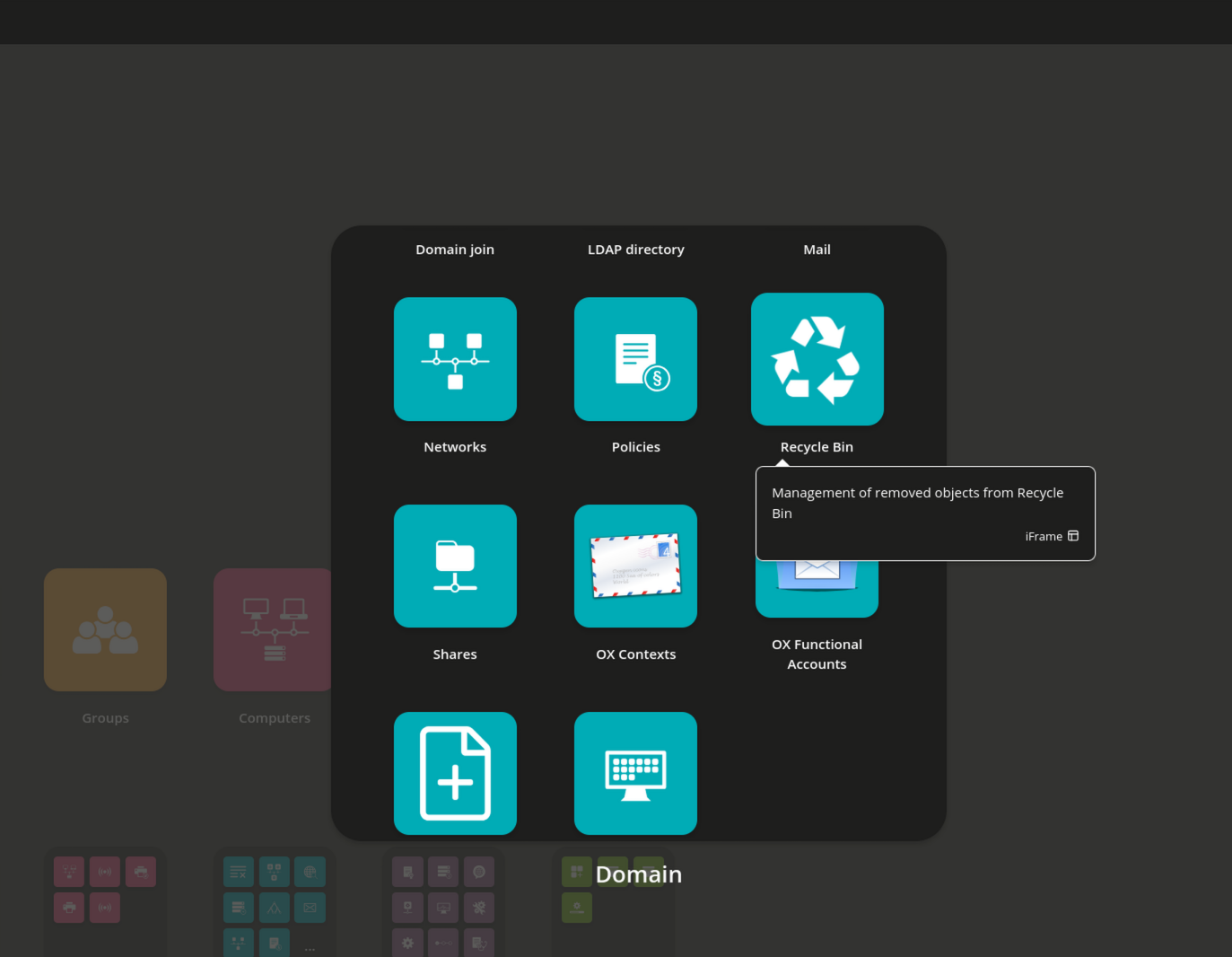

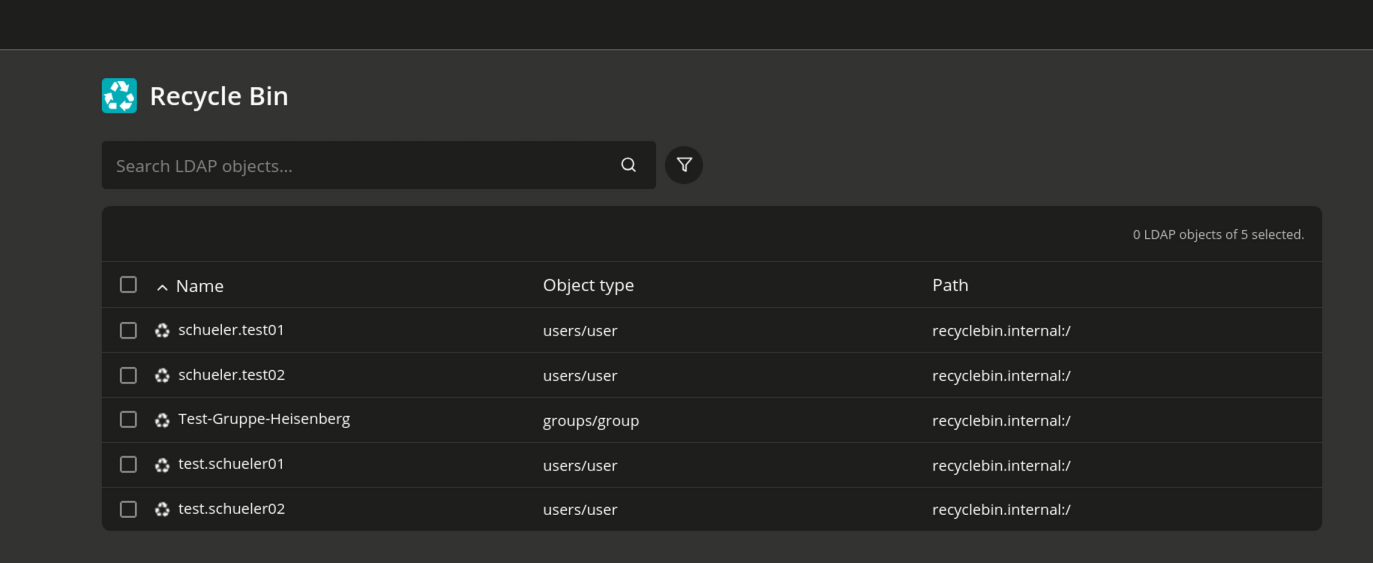

The policy should now work, and deleted users will be find under UMC/Domain/Recycle Bin

Screenshot_20260420_163313
Screenshot_20260420_1633131373×1066 122 KB

Screenshot_20260420_163529
Screenshot_20260420_1635291373×563 71.5 KB

Check the log to get more info

When a user or a group is removed via UMC or directly through UDM, the object is moved to cn=recyclebin,cn=internal.

The operational flow can be traced in /var/log/univention/listener.log. Pay particular attention to the line recyclebin: Created deleted object:

2026-04-20T11:44:19.714998+02:00  PROCESS connecting to ldap://ucs5primary.miro.intranet:7389
2026-04-20T11:44:19.736523+02:00  PROCESS updating 'cn=users,ou=Heisenberg,dc=miro,dc=intranet' command m
2026-04-20T11:44:41.865248+02:00  PROCESS connecting to ldap://ucs5primary.miro.intranet:7389
2026-04-20T11:44:41.892307+02:00  PROCESS updating 'uid=schueler.test01,cn=schueler,cn=users,ou=Heisenberg,dc=miro,dc=intranet' command d
2026-04-20T11:44:41.904886+02:00  PROCESS samba4-idmap: removing entry for S-1-5-21-3450543618-4260802429-757627796-9148
2026-04-20T11:44:42.881645+02:00  PROCESS recyclebin: Created deleted object: univentionRecycleBinOriginalUniventionObjectIdentifier=28870ac4-ee4e-42ce-8962-4946a3488ef0,cn=recyclebin,cn=internal (retention: 180 days)
2026-04-20T11:44:42.891945+02:00  PROCESS ucsschool-id-connector: delete of uid=schueler.test01,cn=schueler,cn=users,ou=Heisenberg,dc=miro,dc=intranet (id: b'd21dcec4-d0e8-1040-9f0b-bd0e1599349a', file: /var/lib/univention-appcenter/listener//ucsschool-id-connector/2026-04-20-11-44-42-891442.json)
2026-04-20T11:44:42.896637+02:00  PROCESS updating 'cn=Domain Users Heisenberg,cn=groups,ou=Heisenberg,dc=miro,dc=intranet' command m
2026-04-20T11:44:42.906700+02:00  PROCESS ucsschool-id-connector: modify of cn=Domain Users Heisenberg,cn=groups,ou=Heisenberg,dc=miro,dc=intranet (id: b'dd325268-1d87-1040-9ba7-f95e5b360cf7', file: /var/lib/univention-appcenter/listener//ucsschool-id-connector/2026-04-20-11-44-42-906295.json)
2026-04-20T11:44:42.912431+02:00  PROCESS updating 'cn=Heisenberg-1A,cn=klassen,cn=schueler,cn=groups,ou=Heisenberg,dc=miro,dc=intranet' command m
2026-04-20T11:44:42.921056+02:00  PROCESS ucsschool-id-connector: modify of cn=Heisenberg-1A,cn=klassen,cn=schueler,cn=groups,ou=Heisenberg,dc=miro,dc=intranet (id: b'15a25e90-496b-1040-868d-9d88985604c9', file: /var/lib/univention-appcenter/listener//ucsschool-id-connector/2026-04-20-11-44-42-920515.json)
2026-04-20T11:44:42.926685+02:00  PROCESS updating 'cn=Heisenberg-1A,cn=klassen,cn=schueler,cn=groups,ou=Heisenberg,dc=miro,dc=intranet' command m
2026-04-20T11:44:42.932678+02:00  PROCESS updating 'cn=schueler-heisenberg,cn=groups,ou=Heisenberg,dc=miro,dc=intranet' command m
2026-04-20T11:44:42.943178+02:00  PROCESS recyclebin: Added group reference to deleted object: univentionRecycleBinOriginalUniventionObjectIdentifier=28870ac4-ee4e-42ce-8962-4946a3488ef0,cn=recyclebin,cn=internal
2026-04-20T11:44:42.945795+02:00  PROCESS ucsschool-id-connector: modify of cn=schueler-heisenberg,cn=groups,ou=Heisenberg,dc=miro,dc=intranet (id: b'dd02e78a-1d87-1040-9b89-f95e5b360cf7', file: /var/lib/univention-appcenter/listener//ucsschool-id-connector/2026-04-20-11-44-42-945340.json)
2026-04-20T11:44:42.950834+02:00  PROCESS updating 'cn=schueler-Heisenberg,cn=groups,ou=Heisenberg,dc=miro,dc=intranet' command m

Deleted objects inside the Recycle Bin can be listed via UDM as follows:

udm recyclebin/removedobject list --filter univentionRecycleBinOriginalUniventionObjectIdentifier=28870ac4-ee4e-42ce-8962-4946a3488ef0

DN: univentionRecycleBinOriginalUniventionObjectIdentifier=28870ac4-ee4e-42ce-8962-4946a3488ef0,cn=recyclebin,cn=internal
  accountActivationDate: None
  birthday: None
  city: None
  country: None
  departmentNumber: Heisenberg
  description: None
  disabled: 0
  displayName: schueler01 test
  employeeNumber: None
  employeeType: None
  firstname: schueler01
  gecos: schueler01 test
  gidNumber: 5102
  groups: cn=Domain Users Heisenberg,cn=groups,ou=Heisenberg,dc=miro,dc=intranet
  groups: cn=Heisenberg-1A,cn=klassen,cn=schueler,cn=groups,ou=Heisenberg,dc=miro,dc=intranet
  groups: cn=schueler-heisenberg,cn=groups,ou=Heisenberg,dc=miro,dc=intranet
  homeShare: None
  homeSharePath: None
  homedrive: I:
  initials: None
  jpegPhoto: None
  lastname: test
  locked: 0
  lockedTime: 0
  mailForwardCopyToSelf: 0
  mailHomeServer: None
  mailPrimaryAddress: None
  organisation: None
  originalDN: uid=schueler.test01,cn=schueler,cn=users,ou=Heisenberg,dc=miro,dc=intranet
  originalEntryUUID: d21dcec4-d0e8-1040-9f0b-bd0e1599349a
  originalName: schueler.test01
  originalObjectClasses: ucsschoolType
  originalObjectClasses: person
  originalObjectClasses: inetOrgPerson
  originalObjectClasses: univentionObject
  originalObjectClasses: organizationalPerson
  originalObjectClasses: ucsschoolStudent
  originalObjectClasses: top
  originalObjectClasses: automount
  originalObjectClasses: krb5KDCEntry
  originalObjectClasses: krb5Principal
  originalObjectClasses: posixAccount
  originalObjectClasses: shadowAccount
  originalObjectClasses: sambaSamAccount
  originalObjectClasses: univentionPWHistory
  originalObjectClasses: univentionMail
  originalObjectType: users/user
  originalUniventionObjectIdentifier: 28870ac4-ee4e-42ce-8962-4946a3488ef0
  overridePWHistory: None
  overridePWLength: None
  password: {crypt}$6$xyiTMwvptB4PtXvO$t9V9ADodQUfa0RpPWixv7MnsYWBTw.CVIAWndT283cZbMPiiVa1i43Pxldt9zrdhvLeiyZ1ebklpOEQJjbc7R/
  passwordexpiry: None
  physicalDeliveryOfficeName: None
  postcode: None
  preferredDeliveryMethod: None
  preferredLanguage: None
  primaryGroup: cn=Domain Users Heisenberg,cn=groups,ou=Heisenberg,dc=miro,dc=intranet
  profilepath: %LOGONSERVER%\%USERNAME%\windows-profiles\default
  purgeAt: 20261017094441Z
  pwdChangeNextLogin: 0
  referencedBy: dn groups/group users uuid 7209da18-d725-49f7-a7f8-64537f7d18ac
  referencedBy: dn groups/group users uuid 0c0f9050-a3a6-4249-9e66-c15dbe14b8bd
  referencedBy: dn groups/group users uuid d81f891f-b643-4f90-acbc-cd27ad13c0fb
  removalDate: 20260420094441Z
  sambaLogonHours: None
  sambaRID: 9148
  sambahome: \\heisenberg\schueler.test01
  scriptpath: ucs-school-logon.vbs
  shell: /bin/bash
  state: None
  street: None
  title: None
  uidNumber: 4074
  univentionObjectIdentifier: 28870ac4-ee4e-42ce-8962-4946a3488ef0
  univentionSourceIAM: None
  unixhome: /home/Heisenberg/schueler/schueler.test01
  unlock: None
  unlockTime: None
  userexpiry: None
  username: schueler.test01

Recommendation

If you need to restore an object, it is recommended to do that just via UMC . If necessary, to perform a password reset, in case the previously created user is unable to log in.

Further Reading

Further information about the Recycle Bin can be found here:

https://docs.software-univention.de/manual/5.2/en/user-management/udm-recycle-bin.html#recycle-bin

Additional:

Removing the Policy from a Container

If the policy should be removed from the OU or container, the --policy-dereference parameter can be used. The command looks as follows:

root@ucs5primary:~# udm container/ou modify --dn ou=Heisenberg,dc=miro,dc=intranet --policy-dereference cn=Recycle-Heisenberg,cn=policies,ou=Heisenberg,dc=miro,dc=intranet
Object modified: ou=Heisenberg,dc=miro,dc=intranet
